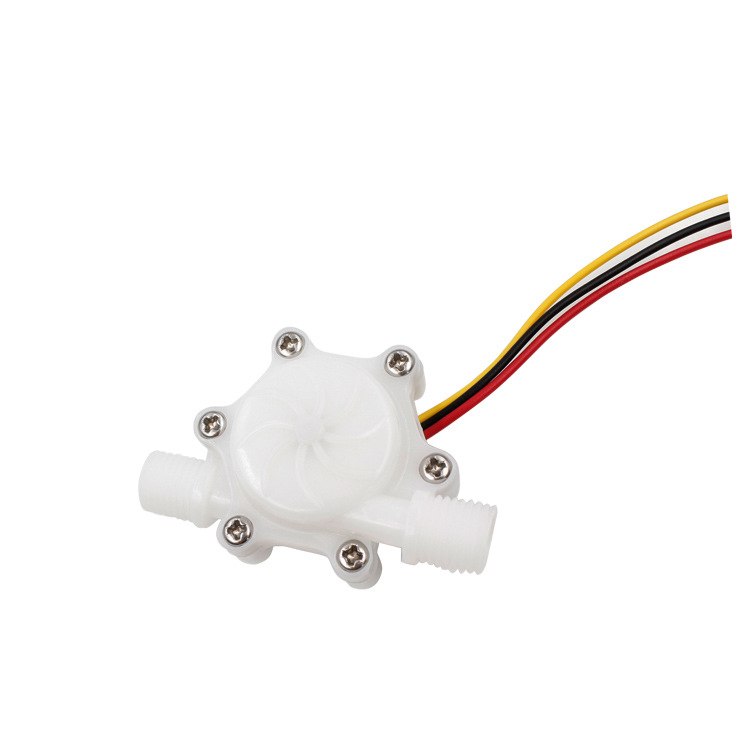

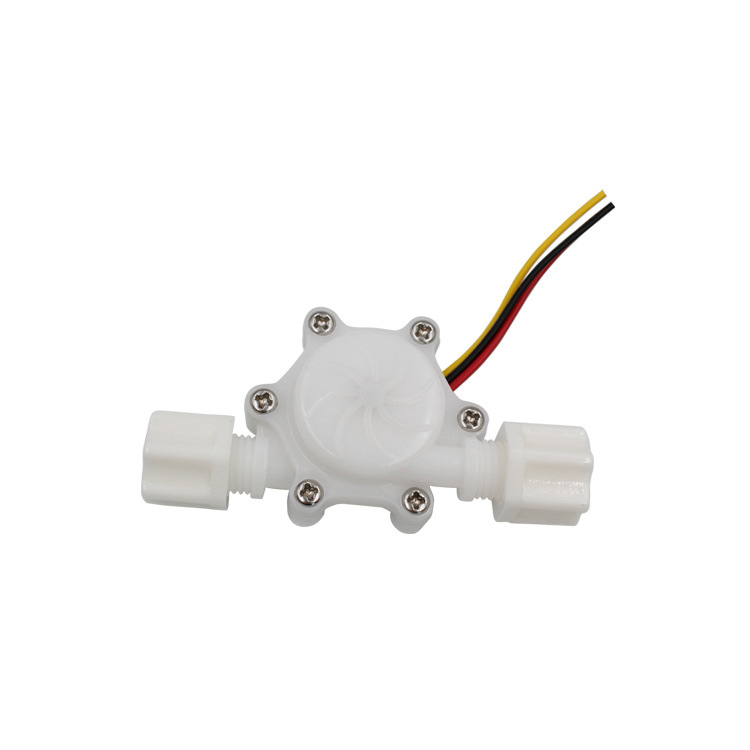

Product Overview: The RGP-W2-PW is a specialized Hall Effect flow sensor designed for precision flow measurement and monitoring. By utilizing the Hall Effect, this sensor converts liquid movement into a pulse signal output, making it ideal for systems requiring specific flow data rather than just a simple on/off status. It can be used both as a flow counter and a flow switch when integrated with the appropriate circuitry.
Technical Specifications: | Feature | Specification |
| Model | RGP-W2-PW |
| Material | High-Quality Plastic (White) |
| Thread Size | G1/4″ |
| Flow Range | 0.3 – 3.0 Liters/min |
| Voltage Range | DC 4.5V – 18V |
| Rated Voltage/Current | DC 5V / ≤10mA |
| Output Signal | High Level >4.5V / Low Level <0.5V |
| Pulse Duty Cycle | 50% |
| Operating Temp| Water ≤ 60°C |
| Pressure Resistance | ≤ 1.2 MPa |
| Insulation Resistance| > 100MΩ |
Applications:
-
Water Heating Systems: Ideal for gas water heaters and electric showers.
-
Smart Appliances: Used in water dispensers, coffee machines, and water boilers for volume control.
-
Industrial Monitoring: Real-time flow calculation for cooling or filtration systems.
