Overview
Overview
| Product | Dissolved Oxygen meter |
| Model | SUP-DY2900 |
| Measure range | 0-20mg/L,0-200%,0-400hPa |
| Resolution | 0.01mg/L,0.1%,1hPa |
| Accuracy | ±3%FS |
| Temperature Type | NTC 10k/PT1000 |
| Auto A/manual H | -10-60℃ Resolution；
0.1℃ Correction |
| Correction accuracy | ±0.5℃ |
| Output Type 1 | 4-20mA output |
| Max.loop resistance | 750Ω |
| Repeatblitiy | ±0.5%FS |
| Output Type 2 | RS485 digital signal output |
| Communication protocol | Standard MODBUS-RTU(customizable) |
| Power supply | AC220V±10%50Hz/60Hz |
| Alarm relay | AC250V,3A |
Product Features
Product Features

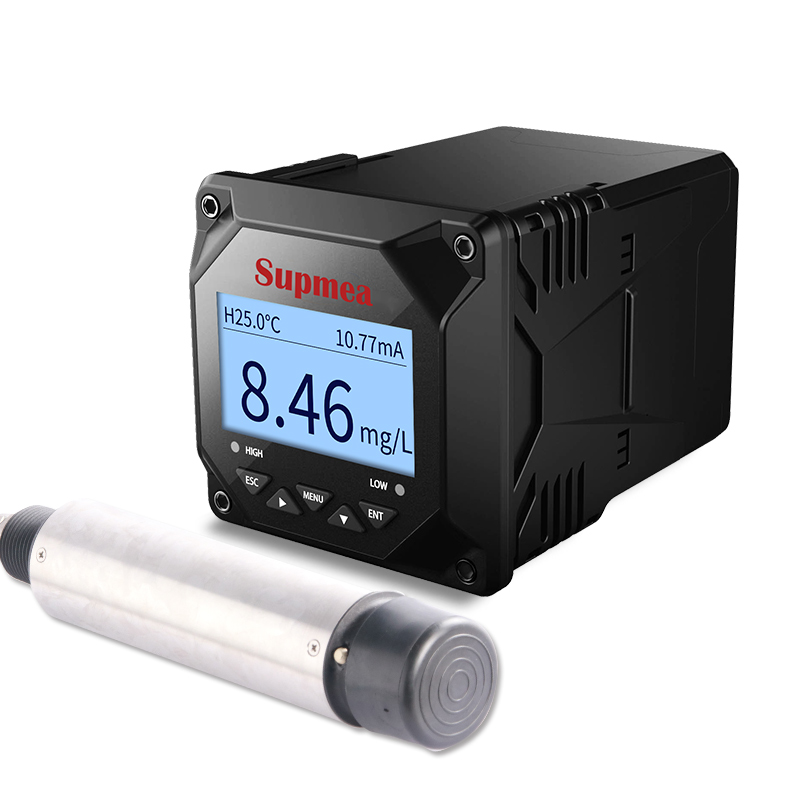

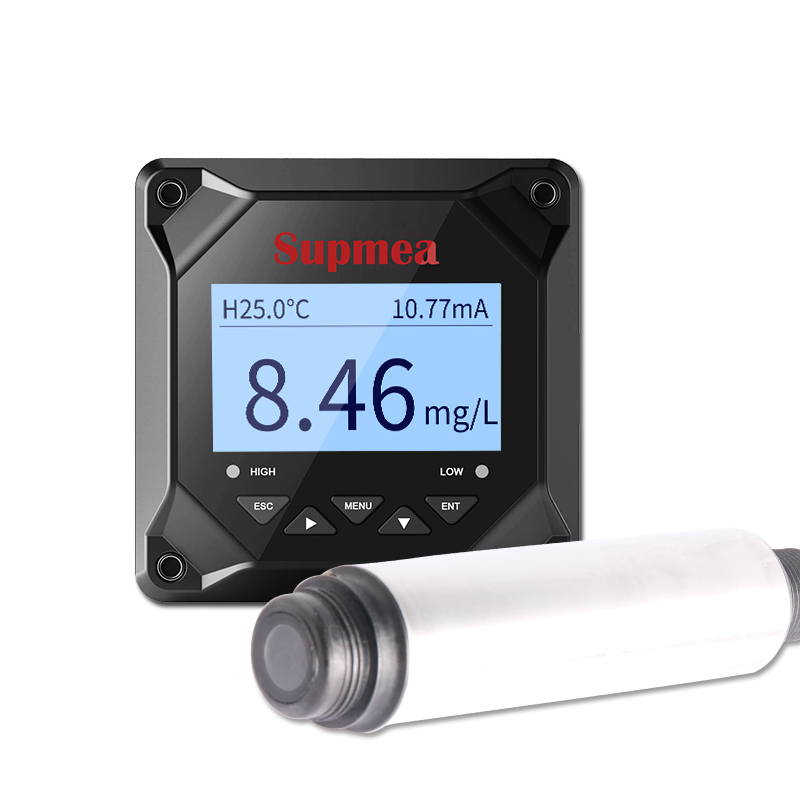

SUP-DY2900 Dissolved Oxygen Meter uses the latest Luminous Dissolved Oxygen measurement probes to provide reliable measurements for industrial and municipal applications. Supmea Dissolved Oxygen Meter use in a wide range of water analyzer solutions.
Order Information
Order Information
| Product | Dissolved Oxygen meter |
| Model | SUP-DY2900 |
| Measure range | 0-20mg/L,0-200%,0-400hPa |
| Resolution | 0.01mg/L,0.1%,1hPa |
| Accuracy | ±3%FS |
| Temperature Type | NTC 10k/PT1000 |
| Auto A/manual H | -10-60℃ Resolution；
0.1℃ Correction |
| Correction accuracy | ±0.5℃ |
| Output Type 1 | 4-20mA output |
| Max.loop resistance | 750Ω |
| Repeatblitiy | ±0.5%FS |
| Output Type 2 | RS485 digital signal output |
| Communication protocol | Standard MODBUS-RTU(customizable) |
| Power supply | AC220V±10%50Hz/60Hz |
| Alarm relay | AC250V,3A |
Installation

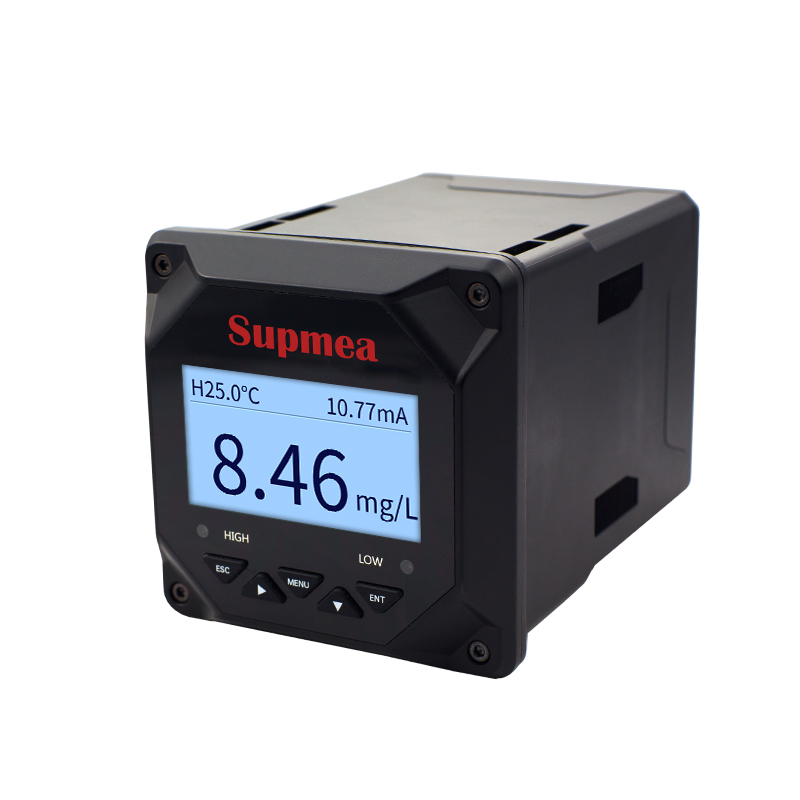

Dissolved oxygen transmitter
Open a 92.5 * 92.5(mm) installation hole on the instrument cabinet or installation panel
(the dimension is 100*100*150mm). Insert the instrument into the installation hole and
latch on the butterfly clasp, as shown below.

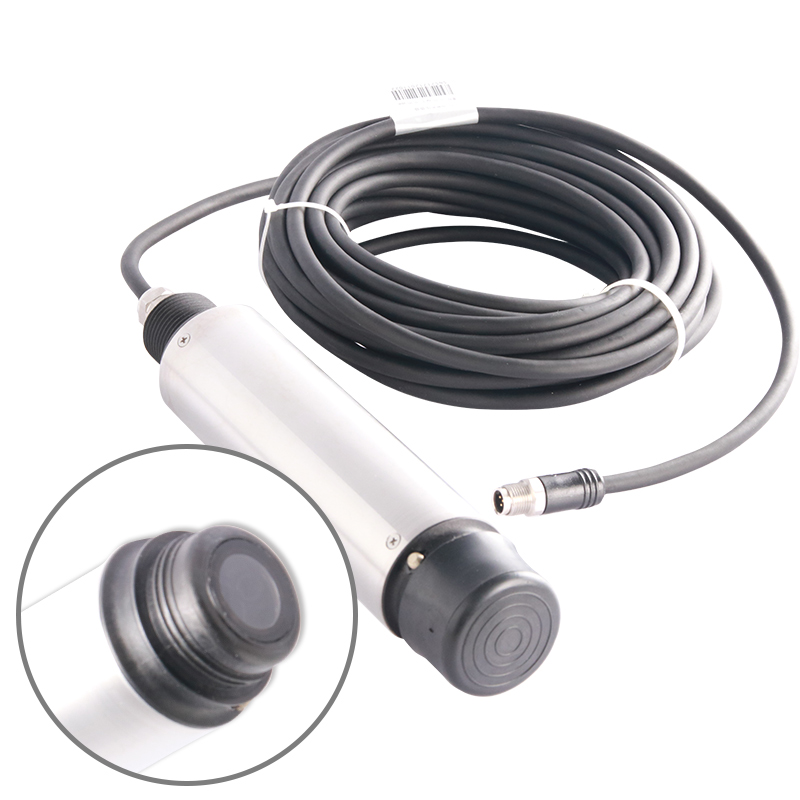

②Dissolved oxygen sensor
