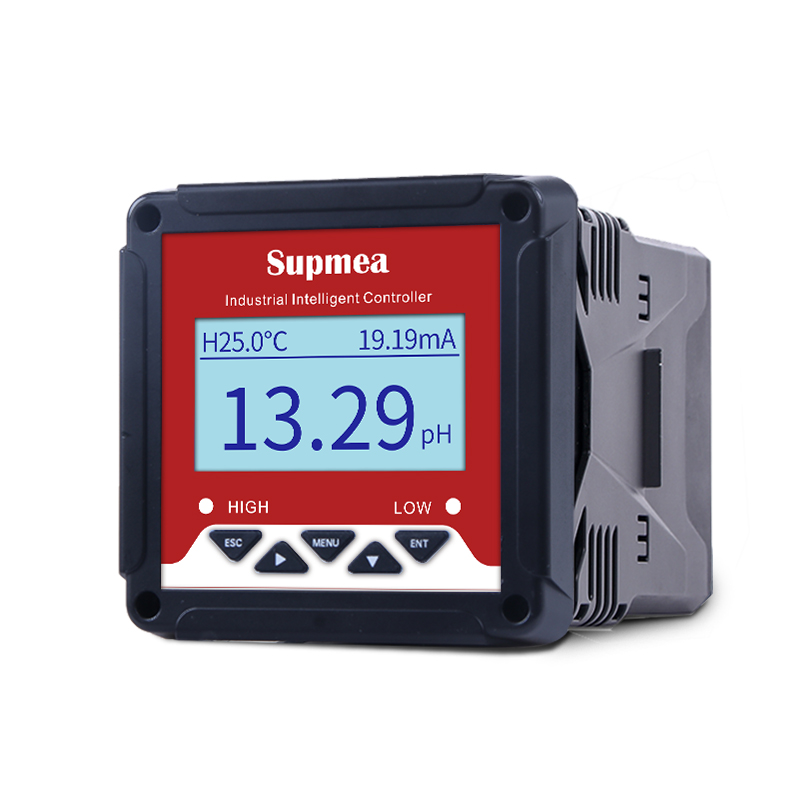

”Supmea” SUP-pH6.3 pH meter controller

หมวดหมู่สินค้า

2020092410255385842

Applications: ”Supmea”

SUP-pH6.3 industrial pH meter is an online pH analyzer which applied in chemical industry metallurgy, environment protection, food, agriculture and so on. With 4-20mA analog signal, RS-485 digital signal and relay output. Can be used for industrial processes and water treatment processes pH control, and support remote data transmission, etc.

Datasheet user' manual

Category: pH/ORP meter Tag: pH/ORP meter controller

Description

Overview

Product	pH meter, pH controller
Model	SUP-pH6.3
Screen size	2.8 inch LCD
Measure range	pH: 0-14 pH, ±0.02pH
	ORP: -1000 ~1000mV, ±1mV
Resolution	0.01pH; 1mV
Stability	pH:≤0.02pH/24h; ORP: ≤3mV/24h
Measuring medium	Liquid
Input Resistance	≥10~12Ω
Temp compensation	Manual/ Auto temperature compensation
Temperature Range	0~100℃， NTC10K or PT1000
Communication	RS485, Modbus-RTU
Signal output	4-20mA, maximum loop 750Ω, 0.01%FS
Power supply	AC220V±10%, 50Hz
Relay output	250V, 3A

Introduction

Order Information

Product	pH meter, pH controller
Model	SUP-pH6.3
Screen size	2.8 inch LCD
Measure range	pH: 0-14 pH, ±0.02pH
	ORP: -1000 ~1000mV, ±1mV
Resolution	0.01pH; 1mV
Stability	pH:≤0.02pH/24h; ORP: ≤3mV/24h
Measuring medium	Liquid
Input Resistance	≥10~12Ω
Temp compensation	Manual/ Auto temperature compensation
Temperature Range	0~100℃， NTC10K or PT1000
Communication	RS485, Modbus-RTU
Signal output	4-20mA, maximum loop 750Ω, 0.01%FS
Power supply	AC220V±10%, 50Hz
Relay output	250V, 3A

Installation
